IDVS.01 Bearing Parameter Monitoring Instrument
Product description
IDVS.01 Bearing Vibration Measurement Sensor
The IDVS.01 Vibration Monitoring Module (VMM) is designed for contact measurement of vibration parameters (RMS vibration velocity, vibration displacement peak-to-peak value, and vibration acceleration amplitude) of non-rotating parts of equipment (units, machines, and mechanisms).
The IDVS.01 Vibration Monitoring Module can be used both as a standalone module for measurement, alarm signaling, and protection of machines and mechanisms against exceeding emergency threshold levels of monitored parameters, and as part of the “PULS 1.02” monitoring and measuring system, process control automation systems (PCS/SCADA), or other automated systems.
Composition of the IDVS.01 Vibration Monitoring Module

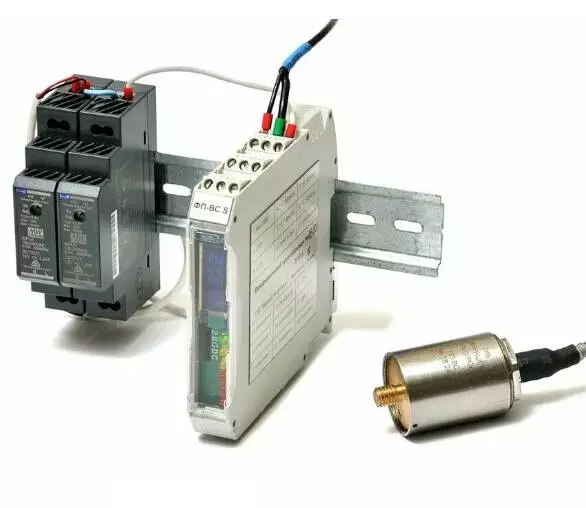

The IDVS.01 Vibration Monitoring Module consists of:
-
a contact single-channel eddy-current primary measuring transducer (PMT) of the PP-IS type;
-
a measuring converter (MC) of the FP-IS type.
The IDVS.01 Vibration Monitoring Module Provides
-
continuous measurement of vibration parameters (RMS vibration velocity, vibration acceleration amplitude, or vibration displacement peak-to-peak value) of non-rotating equipment parts;
-
monitoring and alarm signaling for exceeding emergency threshold levels (3 levels) of vibration parameters (RMS vibration velocity, vibration acceleration amplitude, or vibration displacement peak-to-peak value), vibration jump detection, and exceeding low-frequency (LF) vibration levels;
-
transmission of measured vibration parameter values, as well as amplitudes and phases of harmonic components, via the RS-485 serial interface to external recording and visualization devices;
-
fault signaling for the primary measuring transducer (PMT), including short circuit or open circuit conditions in the communication line between the PMT and the measuring converter (MC);
-
transmission of information on аварійні events and faults via the RS-485 serial interface to external recording and visualization devices;
-
generation of discrete output signals for vibration jump events, exceeding LF vibration levels, and reaching emergency threshold levels of vibration parameters for external alarm systems;
-
generation of a standardized 4–20 mA DC analog output signal proportional to the vibration parameter (RMS vibration velocity, vibration acceleration amplitude, or vibration displacement peak-to-peak value);
-
automatic compensation of ambient temperature influence (temperature compensation) on the measured vibration parameter value;
-
automatic functional self-diagnostics.
Characteristics of the IDVS.01 Vibration Monitoring Module
| Parameter | Specification |
|---|---|
| RMS vibration velocity measurement range, mm/s | 0.5 – 50¹ |
| Relative vibration displacement peak-to-peak measurement range, µm | 10¹ – 1000¹ |
| Vibration acceleration amplitude measurement range, m/s² | 1¹ – 200¹ |
| Vibration parameter frequency measurement range, Hz | 5 – 1000² |
| Reference measurement frequency, Hz | 80³ |
| Maximum permissible basic relative measurement error at the reference frequency: | |
| – RMS vibration velocity, max, % | ±10 |
| – Vibration acceleration amplitude, max, % | ±10 |
| – Vibration displacement peak-to-peak value, max, % | ±10 |
| Amplitude-frequency response (AFR) non-uniformity, max, % | ±5 |
| Transverse sensitivity coefficient, max, % | 4 |
| Vibration parameter signal phase measurement range, degrees | 0–360⁴ |
| Maximum permissible phase measurement error of the vibration parameter signal, max, degrees | ±3 |
| LCD information refresh time, max, s | 0.5 |
| Load resistance for 4–20 mA output signal, max, Ω | 500 |
| Output analog voltage signal range, V | 5 |
| Output discrete signals of the module | Open collector |
| – DC voltage, max, V | 12 |
| – Current, max, A | 1 |
| Digital communication interface types | RS485 (ModBus RTU) |
| Degree of protection | |
| – Primary measuring transducer (PMT) | IP67 |
| – Measuring converter (MC) | IP20 |
| Dimensions | |
| – PMT diameter; body length without stem, mm | 32; 70 |
| – MC height × width × depth, mm | 114.5 × 17.5 × 99 |
| Weight | |
| – PMT without cable, max, g | 175 |
| – MC, max, g | 125 |
-
Upon Customer request, the Vibration Monitoring Module (VMM) may be manufactured with other measurement ranges.
-
Frequency measurement range with standardized metrological characteristics. The actual frequency measurement range of relative vibration displacement is from 2.5 Hz to 1500 Hz.
-
Manufacturing with a different reference frequency value is available upon Customer request.
-
Amplitudes and phases of harmonic components of the vibration parameter are measured only when a keyphasor signal is applied to the corresponding input of the measuring converter (MC).
Operating conditions for the PP-IS primary vibration transducer (PVT):
-
ambient temperature (air, water vapor, oil vapor): from −30 °C to +100 °C (short-term up to +120 °C);
-
electromagnetic field strength: up to 400 A/m;
-
relative air humidity: up to 98% at +35 °C; moisture condensation on the surface of the primary measuring transducer is permissible;
-
atmospheric pressure: from 84 kPa to 106.7 kPa.
Operating conditions for the FP-VS measuring converter (MC):
-
ambient air temperature: from +5 °C to +60 °C;
-
electromagnetic field strength: up to 100 A/m;
-
relative air humidity: up to 80% at +25 °C; moisture condensation is not permitted;
-
atmospheric pressure: from 84 kPa to 106.7 kPa.
Service life of the IDVS.01 Vibration Monitoring Module (VMM): 10 years from the date of delivery to the Customer.
Warranty operating period of the IDVS.01 Vibration Monitoring Module (VMM): 24 months from the date of commissioning.
Warranty storage period of the IDVS.01 Vibration Monitoring Module (VMM): 36 months from the date of purchase.
