IDP.03.D Displacement Monitoring Module
Product description
IDP.03.D Displacement Monitoring Module
The IDP.03.D Displacement Monitoring Module (DMM) is designed for measurement and monitoring of displacement of non-rotating equipment parts (units, machines, and mechanisms).
The IDP.03.D Displacement Monitoring Module is used both as a standalone module for measurement, alarm signaling, and protection of machines and mechanisms against exceeding emergency threshold levels of monitored parameters, and as part of the “PULS 1.02” monitoring and measuring system, process control automation systems (PCS/SCADA), or other automated systems.

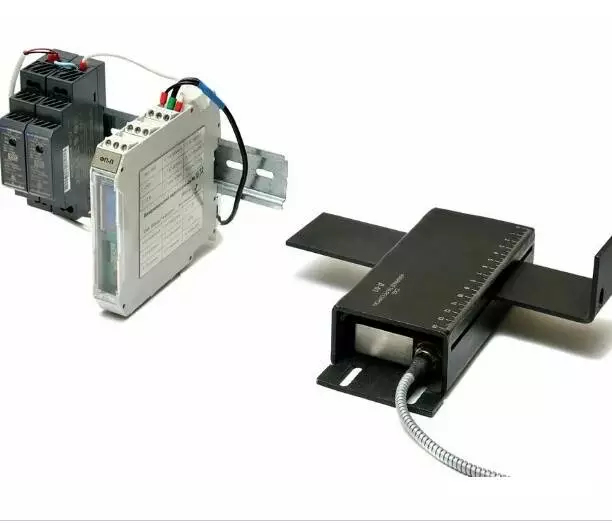

Composition of the IDP.03.D Displacement Monitoring Module
The IDP.03.D Displacement Monitoring Module consists of:
-
a single-channel eddy-current primary measuring transducer (PMT) of the PP-IP.03.D type;
-
a measuring converter (MC) of the FP-P type.
The IDP.03.D Displacement Monitoring Module Provides
-
continuous measurement of current displacement values of non-rotating equipment parts;
-
monitoring and alarm signaling for exceeding emergency threshold levels (4 levels) of displacement;
-
transmission of measured displacement values via the RS-485 serial interface to external recording and visualization devices;
-
fault signaling for the primary measuring transducer (PMT), including short circuit or open circuit conditions in the communication line between the PMT and the measuring converter (MC);
-
transmission of information on emergency events and faults via the RS-485 serial interface to external recording and visualization devices;
-
generation of discrete output signals for events of reaching emergency threshold levels of displacement for external alarm systems;
-
generation of a standardized 4–20 mA DC analog output signal proportional to the displacement;
-
automatic compensation of ambient temperature influence (temperature compensation) on the measured displacement value;
-
automatic functional self-diagnostics.
Characteristics of the IDP.03.D Displacement Measurement Module
| Parameter | Specification |
|---|---|
| Displacement measurement range, µm | 0.1 – 40¹ |
| Alarm threshold setting range, µm | 0.1 – 40 |
| Permissible reduced measurement error of relative displacement, % | ±5 |
| Technological gap¹ ST between the PMT tip and the monitored surface, mm | 1.0 |
| Initial setting gap⁷ Su according to LCD indication readings, mm | 2.0 ± 0.25 |
| LCD information refresh time, max, s | 0.5 |
| Load resistance for 4–20 mA output signal, max, Ω | 500 |
| Number of discrete (logic) outputs | 5 |
| Alarm threshold setting resolution, mm | 0.01 |
| Output discrete signals of the module | Open collector |
| – DC voltage, max, V | 12 |
| – Current, max, A | 1 |
| Digital communication interface types | RS485 (ModBus RTU) |
| Degree of protection | |
| – Primary measuring transducer (PMT) | IP67 |
| – Measuring converter (MC) | IP20 |
| Dimensions | |
| – PMT housing height × length × width, mm | 40 × 190 × 70 |
| – PMT bracket height × length × width, mm | 43 × 200 × 50 |
| – MC height × width × depth, mm | 114.5 × 17.5 × 99 |
| Weight | |
| – PMT without cable, max, g | 1100 |
| – MC, max, g | 125 |
Upon Customer request, the Displacement Monitoring Module (DMM) may be manufactured with other displacement measurement ranges.
Operating conditions for the PP-IP.03.D primary measuring transducer (PMT):
-
ambient temperature (air, water vapor, oil vapor): from −30 °C to +100 °C (short-term up to +120 °C);
-
electromagnetic field strength: up to 400 A/m;
-
relative air humidity: up to 98% at +35 °C; moisture condensation on the surface of the primary measuring transducer is permissible;
-
atmospheric pressure: from 84 kPa to 106.7 kPa.
Operating conditions for the FP-P measuring converter (MC):
-
ambient air temperature: from +5 °C to +60 °C;
-
electromagnetic field strength: up to 100 A/m;
-
relative air humidity: up to 80% at +25 °C; moisture condensation is not permitted;
-
atmospheric pressure: from 84 kPa to 106.7 kPa.
Service life of the IDP.03.D Displacement Monitoring Module (DMM): 10 years from the date of delivery to the Customer.
Warranty operating period of the IDP.03.D Displacement Monitoring Module (DMM): 24 months from the date of commissioning.
Warranty storage period of the IDP.03.D Displacement Monitoring Module (DMM): 36 months from the date of purchase.
Installation of the PP-IP.03.D type primary measuring transducer for monitoring displacement of non-rotating equipment parts.
