IDP.01 Displacement Monitoring Sensor
Product description
IDP.01 Displacement Monitoring Sensor

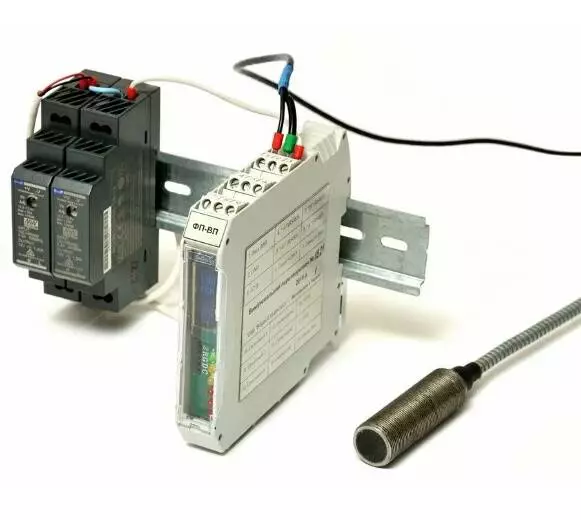

The IDP.01 Displacement Monitoring Module (DMM) is designed for non-contact measurement and monitoring of relative displacement of rotating and non-rotating equipment parts (units, machines, and mechanisms).
The IDP.01 Displacement Monitoring Module is used both as a standalone module for measurement, alarm signaling, and protection of machines and mechanisms against exceeding emergency threshold levels of monitored parameters, and as part of the “PULS 1.02” monitoring and measuring system, process control automation systems (PCS/SCADA), or other automated systems.
Composition of the IDP.01 Displacement Monitoring Module
The IDP.01 Displacement Monitoring Module consists of:
-
a non-contact single-channel eddy-current primary measuring transducer (PMT) of the IP-IP type;
-
a measuring converter (MC) of the FP-P type.
The IDP.01 Displacement Monitoring Module (DMM) provides:
- continuous measurement of current values of relative displacement of rotating and non-rotating equipment parts;
- monitoring and alarm signaling for exceeding emergency threshold levels (4 levels) of relative displacement;
- transmission of measured relative displacement values via the RS-485 serial interface to external recording and visualization devices;
- fault signaling for the primary measuring transducer (PMT), including short circuit or open circuit conditions in the communication line between the PMT and the measuring converter (MC);
- transmission of information on emergency events and faults via the RS-485 serial interface to external recording and visualization devices;
- generation of discrete output signals for events of reaching emergency threshold levels of relative displacement for external alarm systems;
- generation of a standardized 4–20 mA DC analog output signal proportional to the relative displacement;
- automatic compensation of ambient temperature influence (temperature compensation) on the measured relative displacement value;
- automatic functional self-diagnostics.
Characteristics of the IDP.01 Vibration Displacement Monitoring Module
| Parameter | Specification |
|---|---|
| Relative displacement measurement range, µm | 20 – 4000¹ |
| Alarm threshold setting range, µm | 20 – 4000¹ |
| Permissible reduced measurement error of relative displacement, % | ±5 |
| Technological gap¹ ST between the PMT tip and the monitored surface, mm | 1.0 |
| Initial setting gap² Su according to LCD indication readings, mm | 2.0 ± 0.25 |
| LCD information refresh time, max, s | 0.5 |
| Load resistance for 4–20 mA output signal, max, Ω | 500 |
| Number of discrete (logic) outputs | 5 |
| Alarm threshold setting resolution, mm | 0.01 |
| Output discrete signals of the module | Open collector |
| – DC voltage, max, V | 12 |
| – Current, max, A | 1 |
| Digital communication interface types | RS485 (ModBus RTU) |
| Degree of protection | |
| – Primary measuring transducer (PMT) | IP67 |
| – Measuring converter (MC) | IP20 |
| Dimensions | |
| – PMT diameter; body length without stem, mm | 18; 55 |
| – MC height × width × depth, mm | 114.5 × 17.5 × 99 |
| Weight | |
| – PMT without cable, max, g | 175 |
| – MC, max, g | 125 |
-
Measurement range with standardized metrological characteristics. The actual measurement range is from 10 µm to 5 mm.
-
Initial setting gap between the tip of the primary measuring transducer (PMT) and the monitored surface:
S₀ = ST + Su.
Operating conditions for the IP-IP primary measuring transducer (PMT):
-
ambient temperature (air, water vapor, oil vapor): from −30 °C to +100 °C (short-term up to +120 °C);
-
electromagnetic field strength: up to 400 A/m;
-
relative air humidity: up to 98% at +35 °C; moisture condensation on the surface of the primary measuring transducer is permissible;
-
atmospheric pressure: from 84 kPa to 106.7 kPa.
Operating conditions for the FP-P measuring converter (MC):
-
ambient air temperature: from +5 °C to +60 °C;
-
electromagnetic field strength: up to 100 A/m;
-
relative air humidity: up to 80% at +25 °C; moisture condensation is not permitted;
-
atmospheric pressure: from 84 kPa to 106.7 kPa.
Service life of the IDP.01 Displacement Monitoring Module (DMM): 10 years from the date of delivery to the Customer.
Warranty operating period of the IDP.01 Displacement Monitoring Module (DMM): 24 months from the date of commissioning.
Warranty storage period of the IDP.01 Displacement Monitoring Module (DMM): 36 months from the date of purchase.
